A carbon fiber gimbal with an excellent strength-to-weight ratio and separate locks & tension controls for both the swingarm and panning base.

The GH31C uses a lightweight, high-strength carbon fiber material for its main body and CNC-machined aluminum for other parts. The result is a lightweight unit with an impressive maximum load of 33 lbs / 15 kg. The carbon fiber design also helps to reduce vibrations when compared to an all-metal gimbal and is easier to handle in freezing temperatures.

Separate tension controls and locks at both the arm and base provide a wide range of options for precise control. The tension controls allow you to use the gimbal traditionally with loose, free motions or smooth, fluid-like, controlled motions. The locks enable you to lock in either or both movements independently. The included, optional smooth-control handle does a great job of counterbalancing a camera rig for more effortless movements and tracking of moving objects.

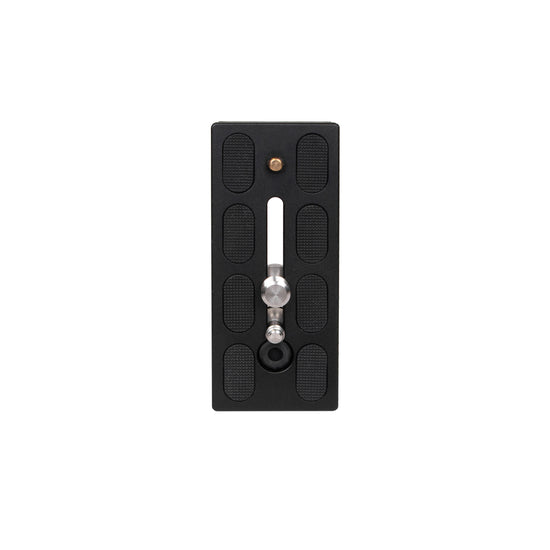

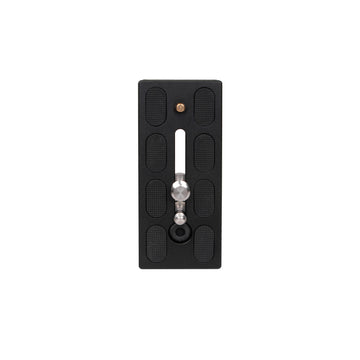

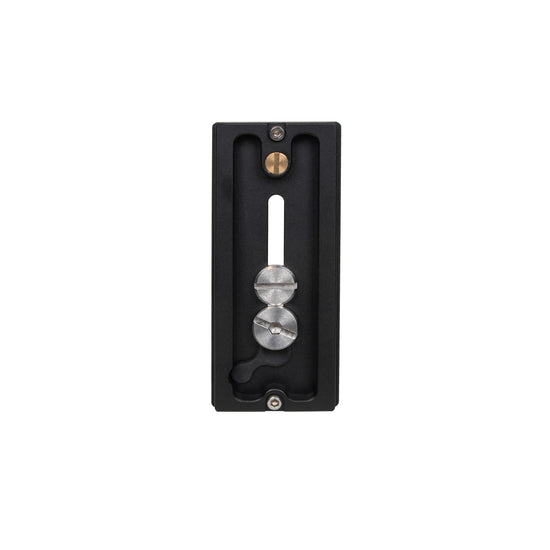

The included Dovetail (Arca-compatible) quick release plate has 1/4"-20 and 3/8”-16 mounting bolts and a removable spring-loaded anti-twist pin. Since many long lenses have two tripod ports (one of each size), connecting both drastically improves stability and eliminates any possible twisting on the plate. A locating mark on the plate aligns with a laser-etched scale on the gimbal, allowing you to repeatably mount a rig to the GH31C in precisely the correct spot for proper balance.

With a cold-weather rating for use down to -13 F / -25 C, the GH31C works well in many climates (operability also depends on moisture and humidity).

The entire GH31C kit breaks down and fits into an included soft, protective travel case.

Key Features:

• Impressive 33 lb / 15 kg maximum load
• Weighs just over 2 lbs
• Cold weather rated to -13 F / -25 C
• Adjustable tension controls at arm and base
• Locks at both arm and base
• Smooth-control handle achieves exceptional maneuverability
• Includes a QR plate that is Dovetail, Arca-type compatible
• Carry case included

• Dimensions: 9" H x 9" W x 3 3/8" D (22.9 cm x 22.9 cm x 8.6 cm)
• Weight: 2 lbs 3 oz (992 grams)
• Maximum load: 33 lbs / 15 kg
• Cold weather performance: -13 F / -25 C

* Note: Dimensions and weight do not include QR plate or smooth-control handle

Includes:

• 1 GH31C Gimbal Head
• 1 Smooth-control Handle
• 1 3398 Quick Release Plate
• 1 Soft fabric carry case with shoulder strap
